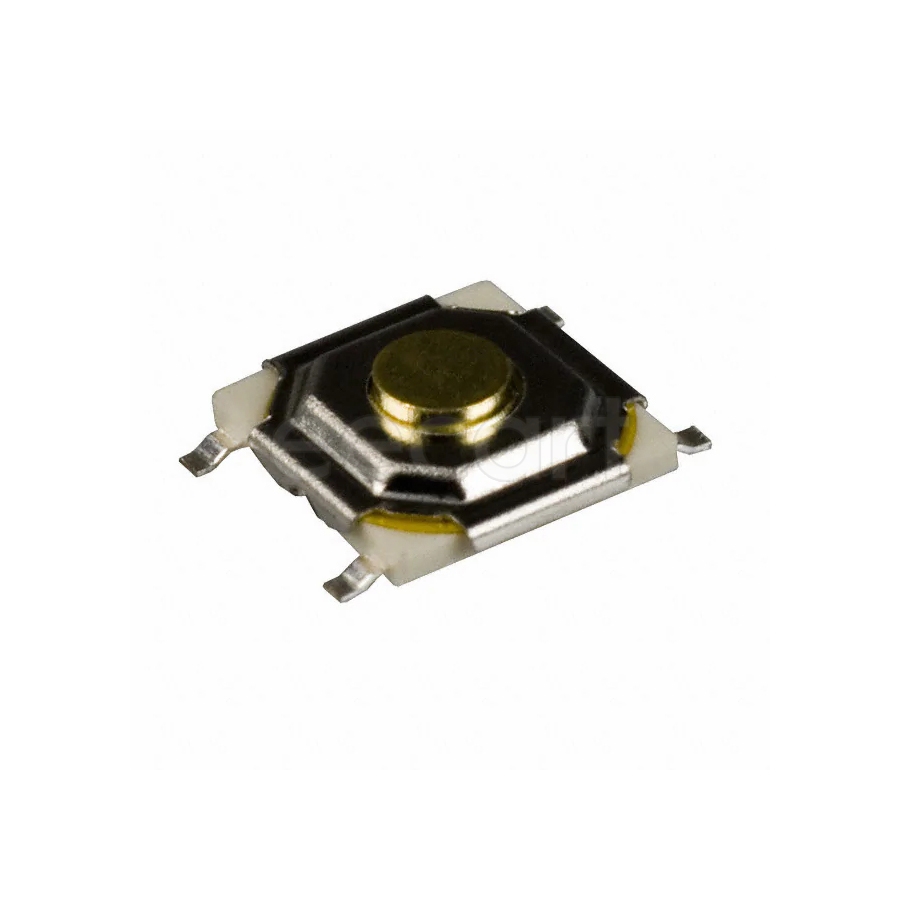

PTS525SM10SMTRLFS
Manufacturer:
C&K Components
Mfr.Part #:
PTS525SM10SMTRLFS
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 1.57 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 5.25 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 1.5 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Depth | 6.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | PTS525SM10SMTRLFS |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Brass, Bronze, Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 300 µm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Operating Force | 1.57 N |
| Switch Travel | 300 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Life (Cycles) | 100 kCycles |
| Cap Color | Gold |
| Color | Gold |
| Actuator Type | Standard |
